4 pre-set V/f;

1 user-defined V/f program Input:

Single phase 230V AC, 50/60 Hz

Output: Three phase 230V AC, 0 to 400 Hz

Output Power: 0.5 HP/0.4 kW to 5 HP/4.0 kW

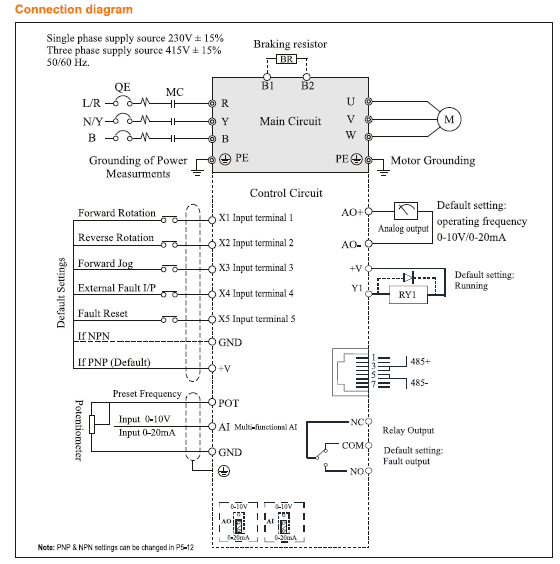

5 (PNP/NPN) Inputs, 1 POT Input, 1 Analog Input (0-10 V/0-20 mA/4-20 mA), 1 Relay output, 1 Analog Output (0-10 V/0-20 mA), and 1 Open Collector Output

Supports the RS485 Modbus Communication Protocol

Provides protection against Over current, Over Voltage, Under Voltage, Over Temperature, Overload and Under current

Suitable for applications like pumps, fans, conveyors, food and drink packaging machinery, industrial washing machines, and most general industries, etc
