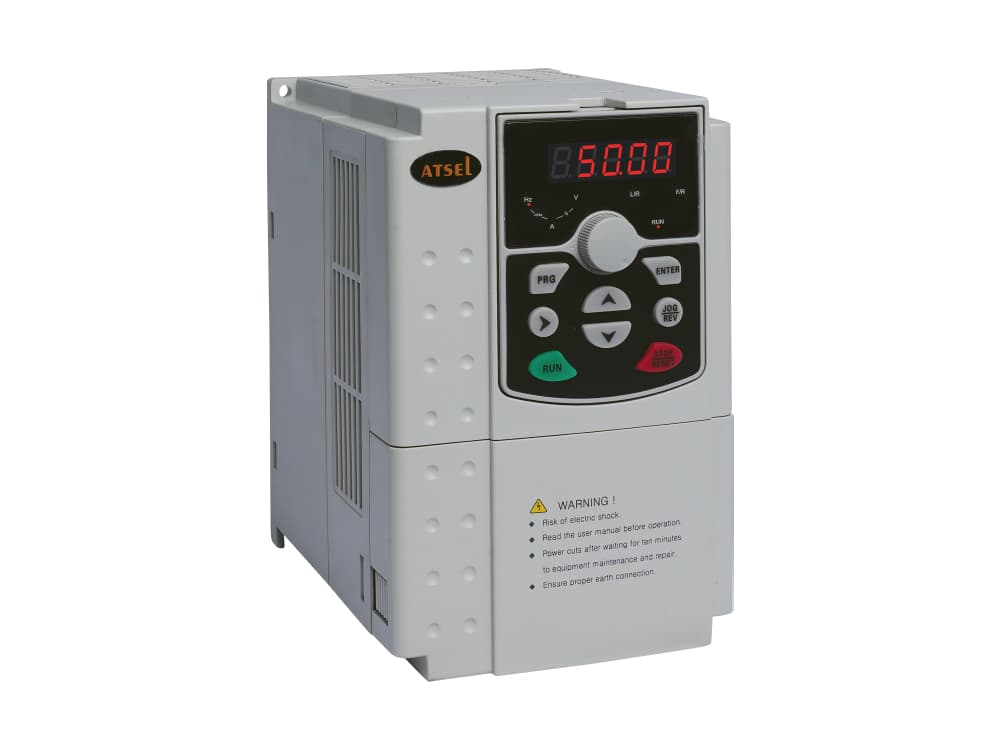

High-powered inverter with V/f Control and sensor-less flux vector control (SFVC), Closed-loop vector control (CLVC) (+PG Card)

Input: Three phase 415V AC ±15%, 50/60 Hz

Output: Three phase 0- Input voltage, 0 to 500 Hz

Output Power: 1 HP/0.75 kW to 200 HP/150 kW

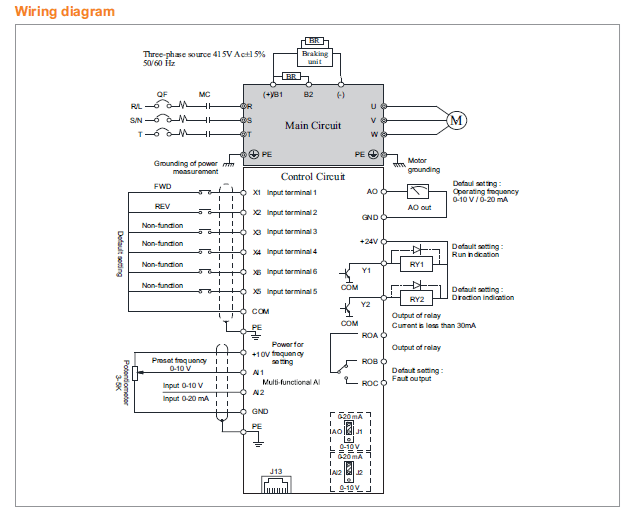

6 Digital Inputs, 2 Analog Inputs (0-10 V and 0-10 V/0-20 mA), 1 Relay Output, 1 Analog Output (0-10 V/0-20 mA), and 2 Open Collector Outputs

Supports the RS485 Modbus Communication Protocol

Provides protection against Over current, Over Voltage, Under Voltage, Over heat, Overload and Phase loss

Suitable for applications like fans, pumps, conveyors, mixers, textile machines, dyeing machines, lithographic printing machines, metalworking machines, injection molding machines, corrugated paper machines, etc.

Certifications: CE
